Can i run the sata drive thru the sas controller

Can I Run The Sata Drive Thru The Sas Controller? Interface for Serial-Attached SCSI (SAS) Solid State Drives are made with installation ease in mind. Instructions are given in this article.

Every SSD with an SAS interface has a separate connection that attaches straight to an SAS host adapter, often known as an SAS controller. Additionally, a multi-drive (or "port replicator") connection may be available and helpful, depending on the SAS controller. As every drive connects directly to its own port and the controller assigns all IDs, unlike (Parallel) SCSI, there is no need to specify an ID.

You can utilize an SAS drive in the same system with SCSI or Serial ATA (SATA) drives as long as both interfaces are supported on the motherboard or with a host adapter. Additionally, if the controller has connections for it, SATA disks and SAS drives can be linked to the same controller (although an SAS drive attached to a SATA controller would not function). Please see Document ID 006170 for further details on connecting an SAS controller to a SATA drive.

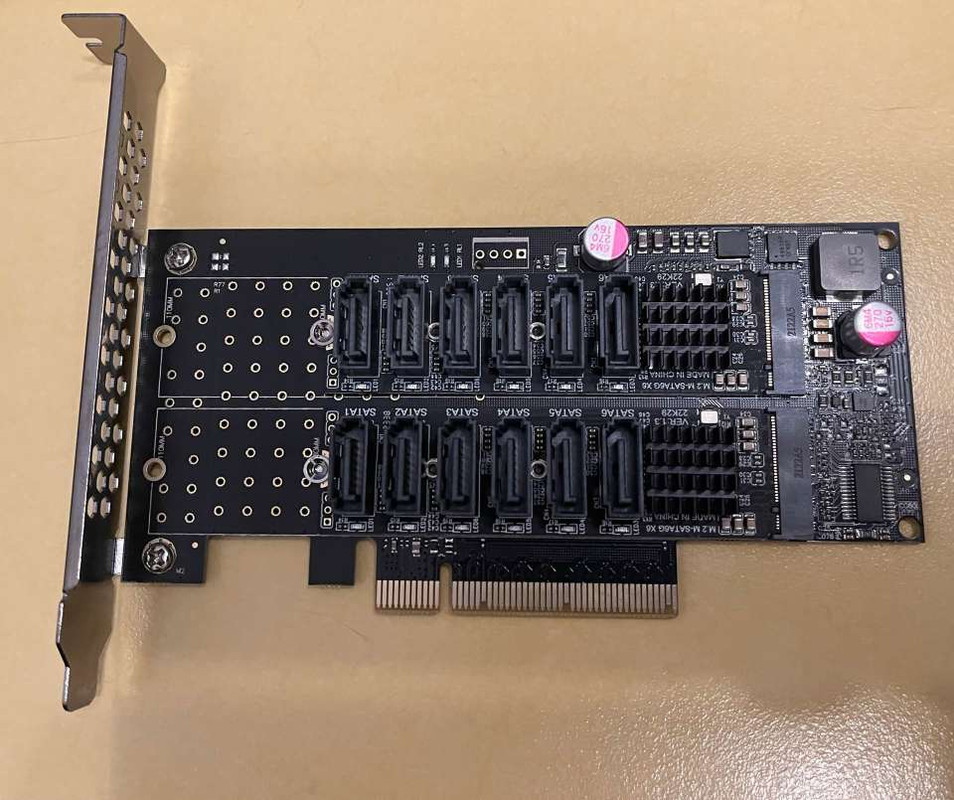

Can I Run The Sata Drive Thru The Sas Controller?

BIOS Setup

The majority of brand-new computers use the system setup program (CMOS or BIOS) to automatically recognize devices. The drive model number may be shown on screen by the auto-detect feature as soon as the system boots up. The initial letters of Seagate drive model numbers are "ST".

Additional Advice

Verify that the SAS channels are turned on. The majority of motherboard configuration programs let users turn off the SAS ports. Verify that all SAS ports are active if the controller is unable to recognize the drive. know about the Can I Run The Sata Drive Thru The Sas Controller?

Taking care and protecting against electrostatic discharge

SSDs are brittle. Avoid dropping or jarring the drive. Only use the drive's edges or frame to handle it.

Static electricity can cause damage to drive electronics. Until the time comes to install it, leave the drive in its antistatic container. Wear a wrist strap and cable linked to ground. Discharge static from any things around or that will contact the drive. Ohmmeters should never be used on circuit boards.

When troubleshooting an equipment that has voltages present, proceed with caution.
The warranty is invalid if the drive is disassembled, therefore avoid doing so.
Return the complete drive for warranty replacement service if any portion is faulty.
Never put pressure on the circuit board or affix labels on the drive's top.
Installation guidelines

Install the drive in the tray or carrier of the host system.

The majority of SAS host systems enable the drive to be hot-plugged into the system by inserting it using a carrier or tray.

Four 6-32 UNC screws are needed to mount the drive to the tray or carrier that the host system provides. Avoid forcing or overtightening the screws. The drive may be mounted in any direction.

Put the drive in.

Insert the carrier or tray into the proper host system bay. This connects the drive straight to the SAS port on your system. An SAS backpanel is often where you can find the SAS connection.

You May Also Like: Can You Play Mk One With One Controller On Switch

System environments

SSDs are made to work with several operating systems. For information regarding formatting and configuring the drive for usage with your specific operating system, please consult the handbook that came with your system or the SAS host adapter (controller).

heating up the drive

Because of this drive's hot plugging capability, you may insert and remove it without shutting down the host computer.

Launch startup configurations.

When power is given to a system with only a few drives, the majority of those drives are set to start up instantly. Systems hosting greater numbers of drives may be programmed to start drives at various times to prevent overwhelming the capacity of the host system’s power supply.

If you would want to modify the drive's startup choice, please consult the documentation that came with your SAS host adapter or host system.

Troubleshooting

Issue: It appears that the computer is unable to detect the disk.

Check to see if the SAS host adapter configuration utility has the drive activated.
Make sure you have installed the SAS controller drivers correctly since if it is, the controller will detect it. For instructions on verifying that your controller drivers have been installed successfully, go to the documentation provided with your controller card.

When attempting to install an operating system on a disk, you often need to boot to the operating system install CD and press F6 when requested (the prompt may likely arrive abruptly and only be on the screen for a brief period of time).

FAQs: Can I Run The Sata Drive Thru The Sas Controller

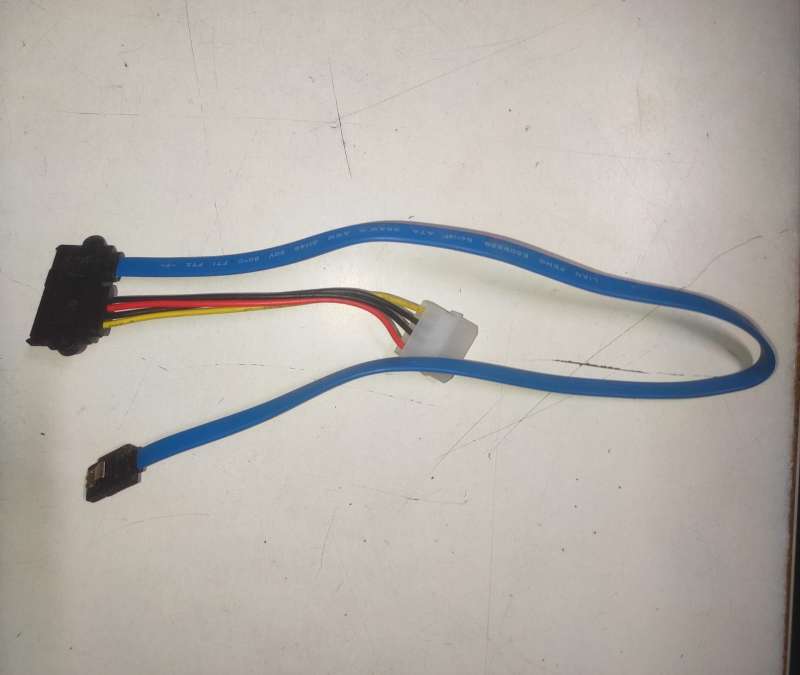

Can I use SATA cable for SAS?

Although SAS and SATA have separate protocols, they use the same physical ports. An SAS system can use SATA drives. SAS will work things out. SATA systems are not compatible with SAS drives.

Is it possible to combine SAS and SATA on one controller?

If SATA and SAS disks are directly connected to your HBA, you should not combine them on the same expander or controller. If you really need to then you should utilize interposers on the SATA disks.

Can I replace a SATA drive with a SAS drive?

Compared to SATA devices, SAS drives have a distinct interface. SAS drives are compatible with both SAS and SATA backplanes because of their more resilient and adaptable interface. That being said, the opposite is untrue. Because SAS backplanes use different signals and interfaces, SATA disks might not function properly.

How many SATA drives can I connect to a SAS port?

The SATA ports on the controller and the SATA drives must be linked one to one; for example, an eight-port SATA controller can connect up to eight disks, while a four-port SATA controller can connect up to four drives.
